Wednesday, December 8, 2010

Interior of my camper

It remarkable that I have not given a proper description to my camper after so many posting. I guess I was more focused on the journey than the carriage, especially the technical detail and the interior. So here it is.

The dining table can be folded down to convert into a double bed, the blower above is a standard car aircon blower. The children are sitting on the benches which also form part of the converted bed.

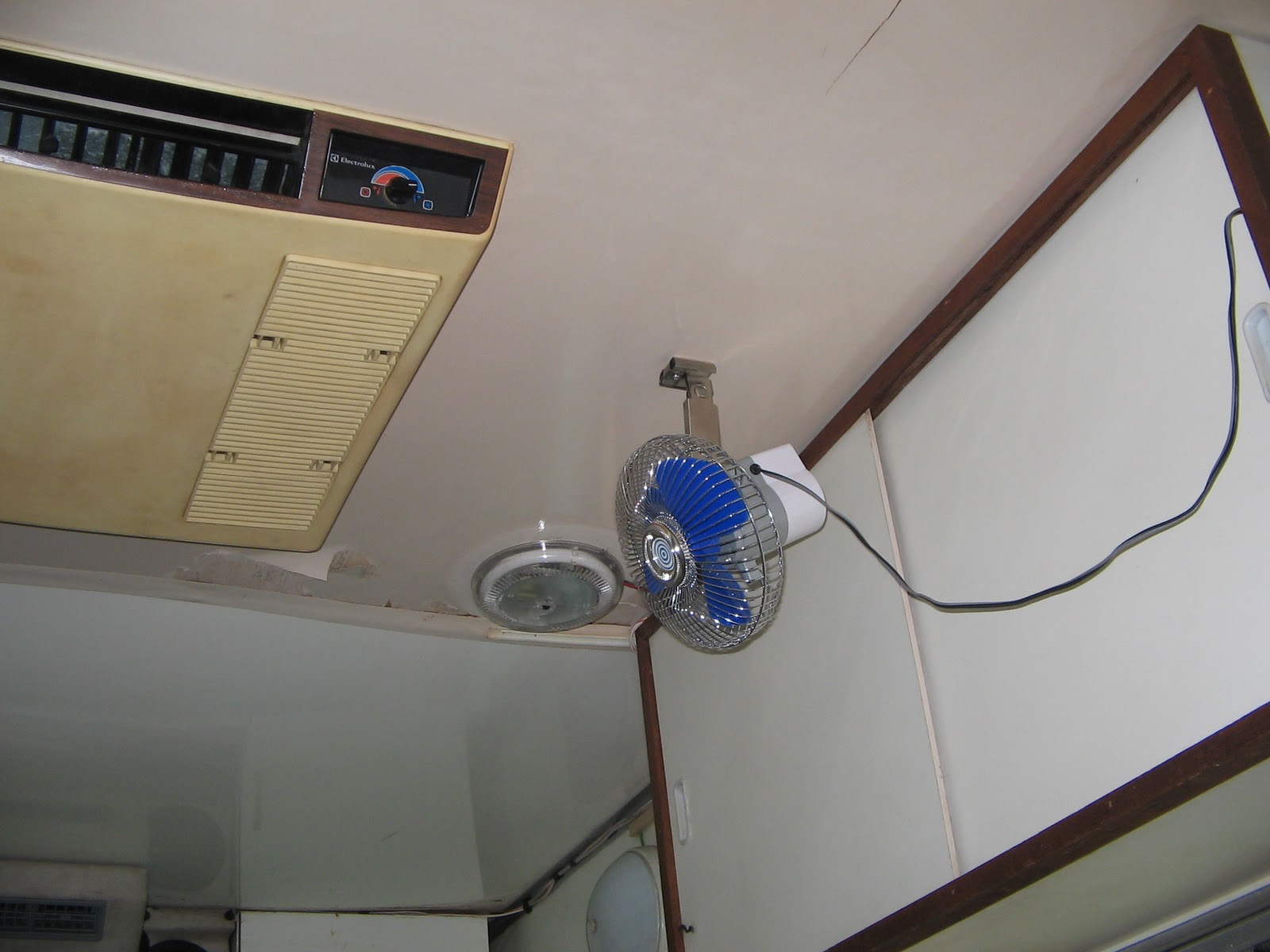

The ceiling aircon can only be used when on site, either by external AC electric power supply or by generator, which the camper carries. In my opinion, this aircon made the camper truly usable in a tropical country like Malaysia. Interestingly, it can also run in reverse mode to function as a heater (blowing cold outside and hot air inside). I recently added a fan for alternative cooling when the weather is not too hot, as you can see I have yet to tuck away the wire neatly.

The washing basin. The water tank is located at the bottom of the camper, an on-demand water pump provide water pressure to the faucet. The pump is self priming type will activate periodically to maintain the water pressure, however if it is left power-on unattended, the auxiliary battery will drained quickly. I learnt this through hard lesson! On the left of the basin is the compartment for stove, the original stove was missing when I bought the camper, so I just use a portable butane stove in its place which I seldom use anyway. Below the stove compartment is a gas powered refrigerator. The cooling element of the fridge no longer works, so it is used  as a storage compartment. I am planning to replace it with a standard mini fridge. The AC power outlets are active only when on site. I am planning to add an inverter to provide AC power from the auxiliary battery.

The driver's cab. It is a standard Toyota Dyna lorry, the body of the camper is custom built and it is wider than the standard cab. The bench seat can accommodates an adult for sleeping provided he/she does not exceeds the height of 5 feet 8 inches!

The bunk above the driver's cab. It can accommodates two persons. It also servers as storage for luggages and mattresses when the camper is on the move

Half of the bath room is taken up by the porta potty, which is a self contained unit with flush water tank and holding tank at the bottom. As you can see the space here is at a premium. Using the right chemical is crucial, otherwise the consequences can be "interesting".  By a happy coincidence, Ace Hardware has also started to sell the chemical required by such porta potty. I usually keep the petrol can here when on the move because the bath  room has an exhaust fan to remove any leakage of petrol fume.  So far the can's seal is good and I have not detected any leakage.

The bath room shower head, it is also powered by the on-demand water pump so the water pressure is very good, in fact if you are not judicious with water usage during shower time, the water supply can run out quickly. The box behind the shower head is the water heater, however the wattage of the heater is beyond what the generator can support. So it is only for on site use with external AC electric power only. The original exhaust fan was a solar powered unit. the solar cell and the motor has packed up long ago, I used a 12v PC fan as a substitute, it is powered by the auxiliary battery.
